XL-6200A ABS+PC 1D Black Single Laser Automatic Barcode Scanner
Product Features
1. Designed for multiple scan function: Manual, Continuous, Automatic.
2. Anti-shock for 1.5m free drop.
3. Support all kinds of 1D code, including GS1.
4. Fully compatible with all kinds of systems, plug and play.
5. Support manual, continuous, automatic scanning.
6. Application in various supermarkets, restaurants, office automation and other fields.
7. Intelligent induction scanning code.
8. Built-in high-speed ARM CPU, fast, strong performance.
9. Highly integrated design, 1.5m anti-drop height, rugged and low power consumption.
Product Specifications
| Model Number | XL-6200A |
| Light Source | Visible Laser Diode 650nm |
| Scan Pattern | Single Scan |
| Decode Rate | 300 times/second |
| Scan Precision | 3mil |
| Scan Width | 30mm@scan window, 220mm@200mm |
| Scan Depth of Field | 0-330mm (0.33mm pcs0.9) |
| Elevation Angle | 65° |
| Deflection Angle | 55° |
| Support Interface | PS-2(KB); RS-232; USB-HID; USB-Virtual COM |
| Print Contrast | 10% UPC/EAN 100% |
| Mention Pattern | Buzzer, Indicator |
| Scan Mode | Automatic & Manual |
| Size | L × W × H:175mm × 73mm × 102mm |
| Weight | 246g |
| Material | ABS+PC |
| Voltage | 5VDC |
| Operating Current | 85mA |
| Static Current | 30mA |
| Laser Class | Meet the Grade I National Criteria for Laser Safety |
| EMC | CE& FCC DOC compliance |
| Operating Temperature | -0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5% to 85% relative humidity,non-condensing |
| Light Levels | Daylight,3000-8000LUX |
| Shock | Designed to withstand 1.5M drops |
| Decoding Capability | EAN-8/EAN-13/UPC-A/UPC-E/Code 39/Code 93/Code 128/EAN128/Codaber/Industoal 2 of 5/Interleave 2 of 5/Matrix 2 of 5/MSI. |

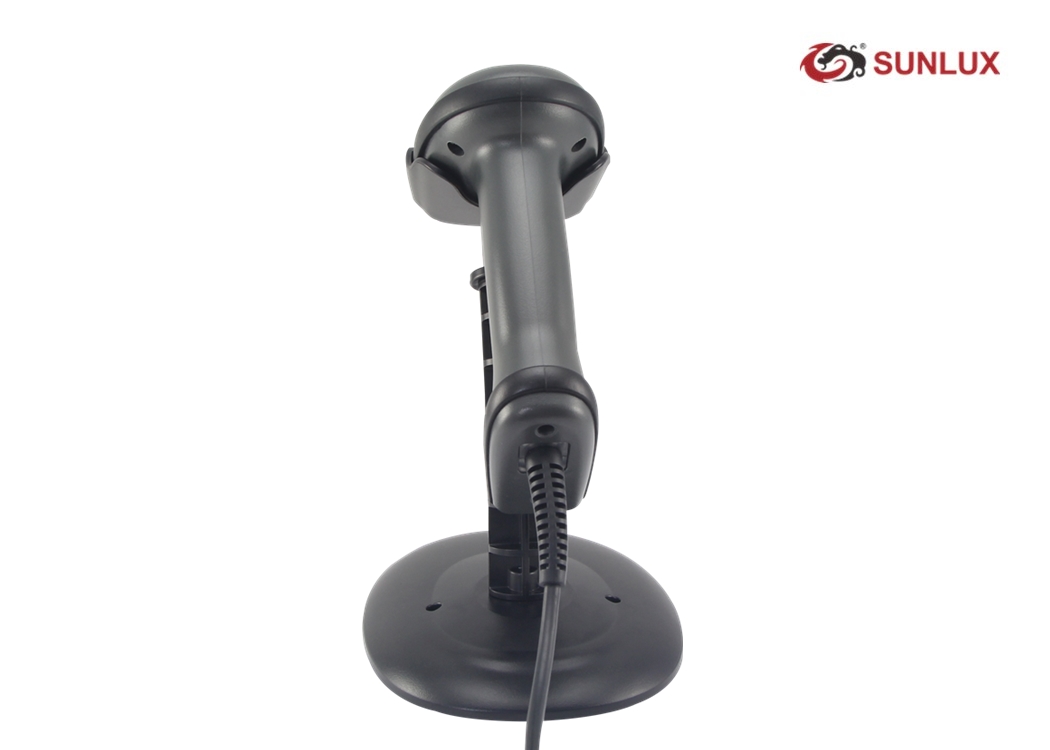

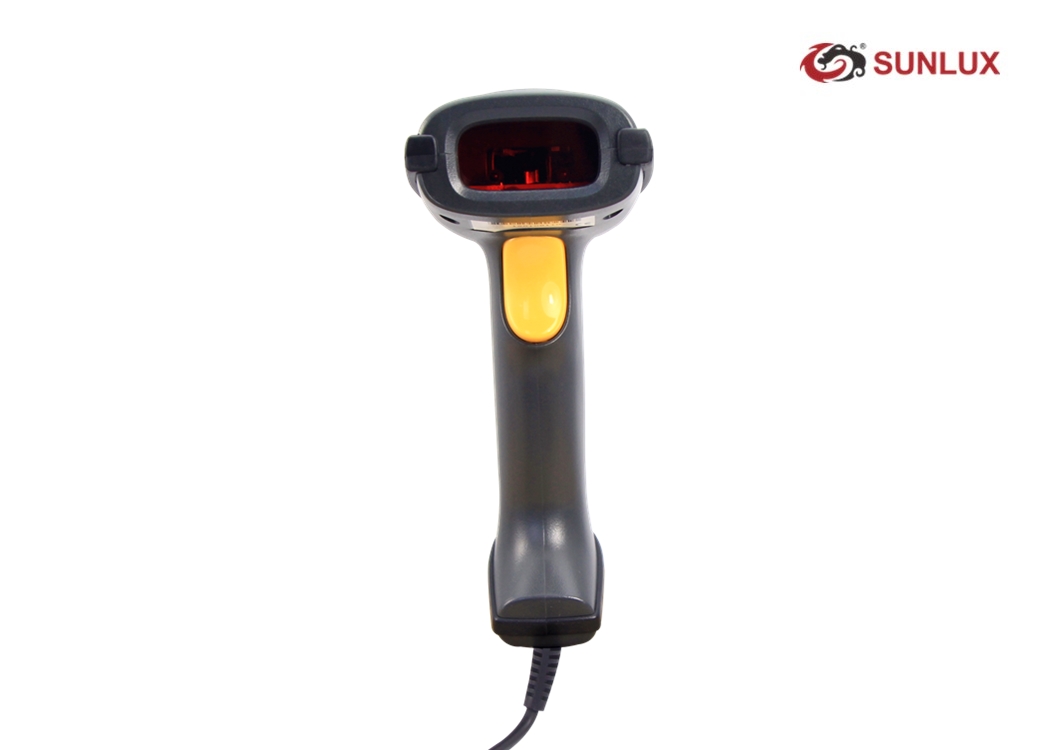

Product Images
RFQ
1. How about the quality?
Professional QC team and testing machine(Engine age testing,wire bending machine,switch life testing,shock resistance testing). All the products pass CE, FCC, ROSH, etc.
2. Why so competitive?
With over 13 years experience,we're listed barcode scanner manufacturer in China.We are the Top 3 barcode scanner brand in China.So large quantity will reduce our raw material cost directly.What's more,we have mature technology to save cost.
3. How to control the performance stable?
We take the flow line production in the whole processing.Every product will test 5 times at least before it delivery.
4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.
5. Why customer choose us?
ISO9001 factory with strictly quality control system.Prompt after-sales service.
6. How about the factory?
We have more than 200 workers with advanced dust-free plant.We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields.
